The name in engine cooling fans
FANS FOR OEM
ORIGINAL EQUIPMENT MANUFACTURERS

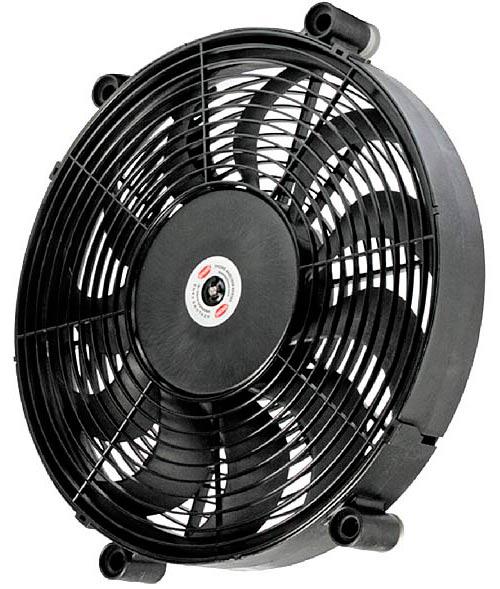

Advanced design combines experience with technology. Kenlowe fans are developed in the wind tunnel and climate chamber with many having curved blades to achieve maximum efficiency as well as high performance. Waterproof motors with long brush life, dual ball race bearings and fully balanced fans are incorporated in a range of Low amp and High amp High performance fans. Kenlowe fans are manufactured to British Standards ISO9001 to OEM accreditation TS16949 to ensure reliability and long life.
Kenlowe are proud to have invented thermo electric engine cooling fans worldwide 60 years ago and today produce class leading state of the art fans.
Our engineers can work with original equipment manufacturers to produce dedicated specifications or select from a wide range of standard continuously rated models in 12 or 24V, blower or suction airflow.
Kenlowe only supply fans to vehicle manufacturers/engineering companies and field replacements for existing specialist applications. We no longer make or supply thermo electric fan packages for retrofit on individual cars for the automotive aftermarket.
High Performance
Low Amp Fans
7” (180mm) to 16” (400mm)
HIGH PERFORMANCE LOW AMP FANSTypically for single low resistance radiators. |
||||
|---|---|---|---|---|
| Fan Part No: | OD mm |
TIP mm |
HUB mm |
Amp Draw |
| 7.HP.B/S.12V | 179 | 36 | 64 | 5.5 |
| 8.HP.B/S.12V | 202 | 36 | 64 | 6 |
| 9.HP.B/S.12V | 244 | 36 | 60 | 6.3 |
| 10.HP.B.12V | 272 | 33 | 51 | 6.7 |
| 11.HP.B/S.12V | 282 | 40 | 66 | 8.3 |
| 12.HP.B/S.12V | 292 | 41 | 82 | 10.5 |
| 13.HP.B.12V | 320 | 40 | 76 | 12.2 |
| 14.HP.B/S.12V | 351 | 45 | 85 | 12.7 |
| 16.HP.B/S.12V | 400 | 49 | 105 | 15 |
Airflow performance available on request in conjunction with fan and motor specification options. |
||||
Extreme and High Performance
High Amp Fans
10” (250mm) to 17” (429mm)
EXTREME HIGH PERFORMANCE HIGH AMP FANSTypically for thicker, high resistance (high potential performance) single or multiple radiators. |
|||||
|---|---|---|---|---|---|
| Fan Part No: | OD mm |
TIP mm |
HUB mm |
Amp Draw |
Free Airflow m3/h |
| 10.XHP.B.12V | 272 | 33 | 51 | 10 | 1852 |
| 11.XHP.S.12V | 300 | 40 | 89 | 15 | 2298 |
| 12.EHP.B/S.12V* | 325 | 66 | 66 | 23.5 | 3342 |
| 13.EHP.B.12V* | 320 | 40 | 76 | 23.5 | 3342 |
| 14.EHP.B/S.12V* | 368 | 66 | 66 | 24 | 3740 |
| 16.EHP.B/S.12V | 400 | 49 | 110 | 20.8 | 4050 |
| 17.EHP.B/S.12V* | 429 | 66 | 66 | 24 | 4096 |
|
Airflow figures quoted are in free air..
*These 2 speed fans are suitable for negative earth vehicles only. B/S = blower or suction, B is blower only and S is suction only. 24V available in most models - enquire. |
|||||
